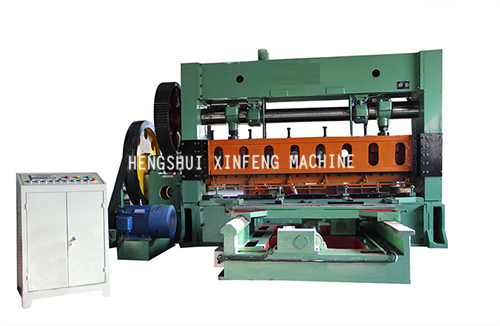

The fence mesh machine is used produce the expanded metal mesh for fence,the fence is usually applied in construction,hardware,door,windows,safety fence,highway guardrail and lathes.This kind of fence mesh usually need surface treated to used as door and the highway guardrail,etc.The machine is in high speed with satisfied expanded mesh.The shearing force of the expander is related to the thickness of the materials as well as the LWD. Considering the same thickness of the raw materials,the shearing force will increase with the decreased LWD.
expanded mesh machinery; expanded metal lath machine
Main technical parameters:
Model: XF-4-2500
Range of the thickness: 0.5-4mm
Cutting width: 2500mm

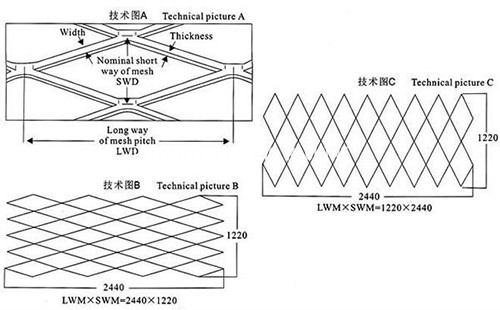

SWD: 10-70mm
LWD: 20-150mm
Working speed: 60 strokes per minute
Feeding distance: 0-4mm
Motor power: 15kw
Net weight: 15T
Punching force:100T
Overall size: 3600mm*2500mm*3000mm

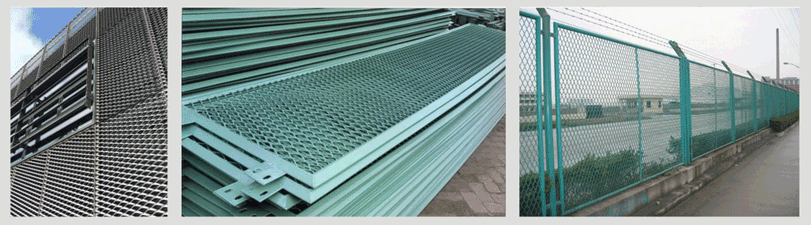

Typical application of expanded metal mesh:
