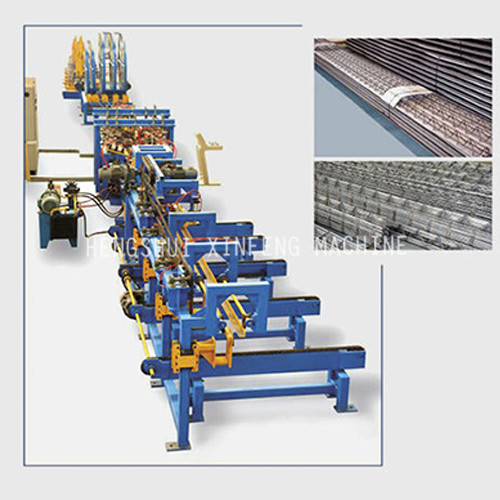

Truss Girder Welding Machine

Characteristics
The plant is controlled with a system which is reliable, powerful and flexible and controls all the functions of the machine and allows an easy interface with the operator. The main computer has a diagnostic system which allows an immediate check of all the signals emanating from the machine.
All the axis parameters, machine times and speeds are adjustable from the computer.
The programming is quick and easy so as to be as user friendly to the operator as possible.
The welding is controlled by units which allow the operator to adjust and change the periods and the power relative to the production at hand.
All the power apparatuses for driving the motors and all other functions are mounted in the electronic switching cabinets; all the signal lights and the various commands are found on the cabinets.

The operator controls the plant through the electronic control stations which are positioned appropriately.

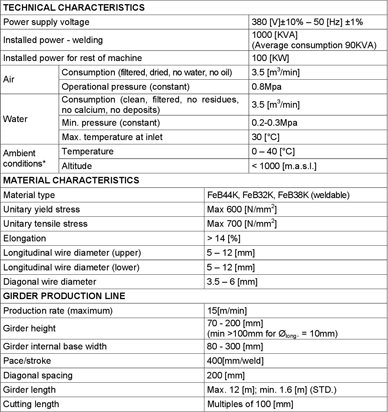

Main parameters:

Power supply		380 +/-10% [V] , 50 +/-1% [Hz]
Electric power of welding unit		800 KVA  (average 90KVA)
Other machine power		50 KW
Source gas	Row amount	2000 L/min at 6 Bar
	pressure	6 Bar
Cooling water	Row amount	150 L/min
	Min. presuure	3 Bar
	MAX water temperature	25 C
	water inlet	2 x 1"
	water exit	1 x 3"
Circumstance	temperature	0 - 40 C
	altitude	< 1000 m.a.s.l.
Raw and processed material
Yield strength	MAX 600 N/mm2
Tensile strength	MAX 700 N/mm2
Elongation	> 14 %

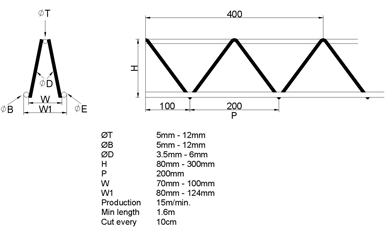

Top wire diameter	5 - 12 mm
Bottom wire diameter	5 - 12 mm
Bending wire diameter	3.5 -6 mm
Truss girder welding machine
Max welding speed	12m/mi
