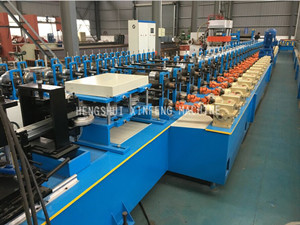

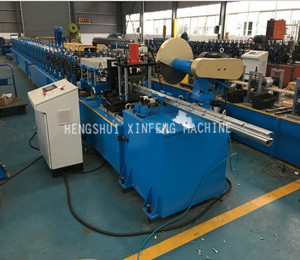

Fence peach post forming machine

Process flow of peach post forming machine:

Technical parameters:
Steel thickness: 0.8-1.2mm
Working speed: 3-5m/min;
Roll stands: 22
Roll material: Gcr15 steel, high-frequency hardening HRC58-62, roll diameter: 120mm;
Main shaft material: 45# steel, quenching and tempering treatment, shaft diameter 60mm; Chain: material 45# steel, high-frequnecy hardening, pitch: 31.8; number of teeth: 10; Main motor power: 7.5KW;
Cutting: use saw cutting, hydraulic punching. Blade material: Cr12Mov; Quenching HRC58-62;
Motor of hydraulic punching and cutting device: 3KW;
Electric control system: PLC system, brand: Panasonic; Touch screen brand: Panasonic; Rotary enclder brand: Omron; Converter brand: Panasonic;
Machine size: 12000mm×900mm×1100mm;
Total machine weight: about 11 tons

The finished products:
